Description

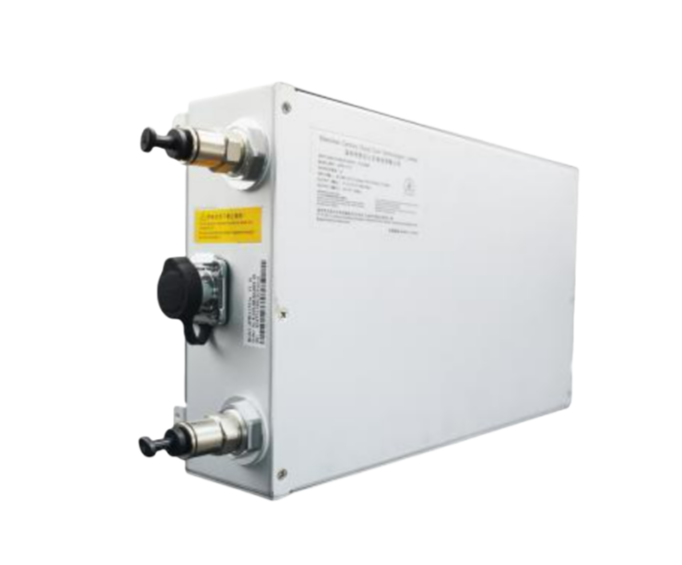

APW11
OUT1
| DC Voltage | 17V-21.6V |
| Rated Current(220V input) | 300A |
| Rated Power (220V input) | 6500W |
| Ripple & Noise | <1% |
| Source Regulation | <1% |
| Load Regulation | <1% |
| Setup, Rise Time | <5S |
| Power off Protection Trip Time | >10mS |
OUT2
| DC Voltage | 12.3V |
| Rated Current(220V input) | 12A |
| Ripple & Noise | <1% |
| Voltage Accuracy | 12.2V-12.4V |
| Source Regulation | <1% |
| Load Regulation | <1% |
| Setup, Rise Time | <2S |
| Power off Protection Trip Time | >10mS |
Input
| Voltage Range | 380-415V AC |
| Frequency Range | 50-60Hz |
| Power Factor | >0.99(full load) |
| Leakage Current | <1.5mA（380V 50Hz） |
Protection
| Low-voltage Input | <304V AC |
| Output Short Circuit | Yes |
| Output Overcurrent | 300-350A |
| Overheat Protection | Yes |
Environment
| Operating Temperature | -20-45℃ |
| Operating Humidity | 20%-90%RH(non-condensing) |
| Altitude | < 2000m |
Structure
| Dimensions | 320*179*63mm |
| Weight | 5kg |
| Cooling Mode | water cooling |
| Noise | 67dBA |
