Description

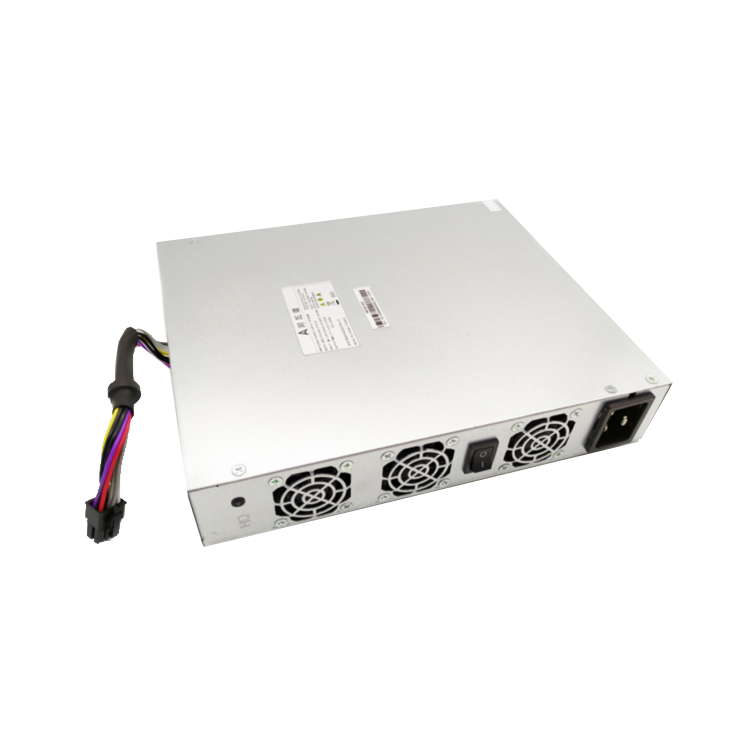

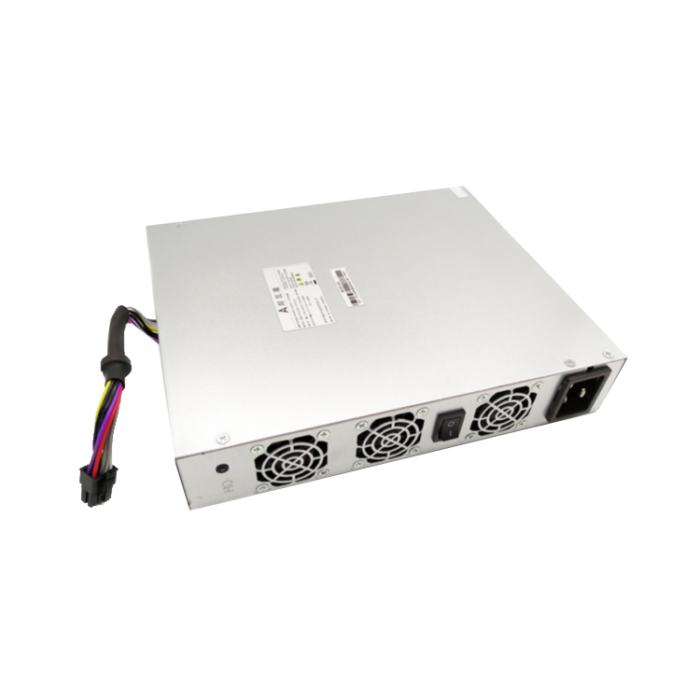

Avalon PSU3300-03 Power supply
OUT1
| DC Voltage | 11.5-14.5V |
| Rated Power (220V input) | 3100W |
| Ripple & Noise | <1% |
| Source Regulation | <1% |
| Load Regulation | <1% |
| Setup, Rise Time | <5S |
| Power off Protection Trip Time | >10mS |
OUT2
| DC Voltage | 12V |
| Rated Power(220V input) | 200W |
| Ripple & Noise | <1% |
| Source Regulation | <1% |
| Load Regulation | <1% |
| Setup, Rise Time | <2S |
| Power off Protection Trip Time | >10mS |
Input
| Voltage Range | 185-280VAC |
| Frequency Range | 50-60Hz |
| Power Factor | >0.99(full load) |
| Leakage Current | <1.5mA（380V 50Hz） |
| Overheat Protection | Yes |
Environment
| Operating Temperature | -40-55℃ |
| Operating Humidity | 20%-90%RH(non-condensing) |
| Altitude | < 2000m |
Structure
| Dimension | 240*200*45mm |
| Weight | 5kg |
| Cooling Mode | forced air cooling |
| Noise | 67dBA |
